Marine gearbox T300/1 |
| Power/speed(kw/rpm):4.4/1000~9.2/2100 |
| Ratio(i)
|
8.924:1 9.452:1
|
| Rate(kw/rpm) |
0.196 |
|
| Rated thrust propeller:70KN |
| Center distance:355mm |
| Bell housing: SAE0 1 |
| Flywheel:SAE18 16 14 |
| L×W×H:722×980×1106mm |
| Net weight:1120kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| |

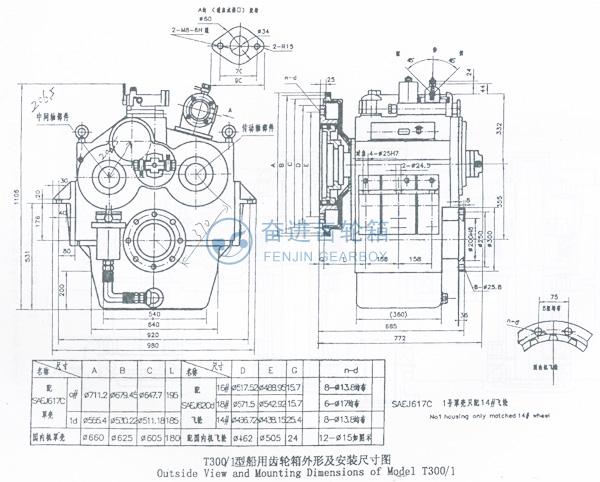

| Design Of Marine gearbox T300/1 |
|
| |
|
 |
|
