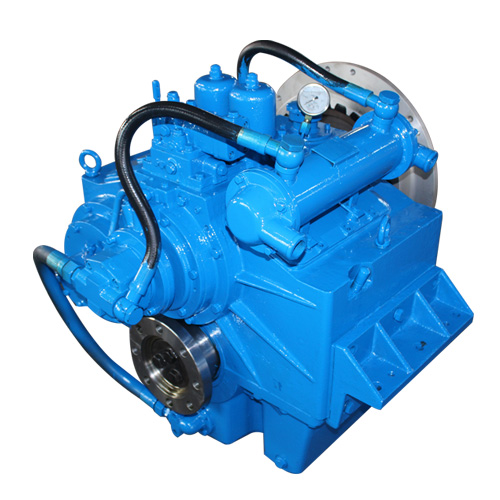

Marine gearbox D400A |
| Power/speed(kw/rpm):331/1000~595/1800 |
| Ratio(i)
|
3.96 4.33 4.43 4.70
5.0
|
5.53
|
5.89
|
| Rate(kw/rpm) |
0.331 |
0.293 |
0.272 |
|
| Rated thrust propeller:82KN |
| Center distance:355mm |
| Bell housing: SAE0 1 |
| Flywheel:SAE18 16 14 |
| L×W×H:641×950×988mm |
| Net weight:1100kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: Z6170 / 6190ZC / KT38-M800 / TBD604BL6…
|
| |

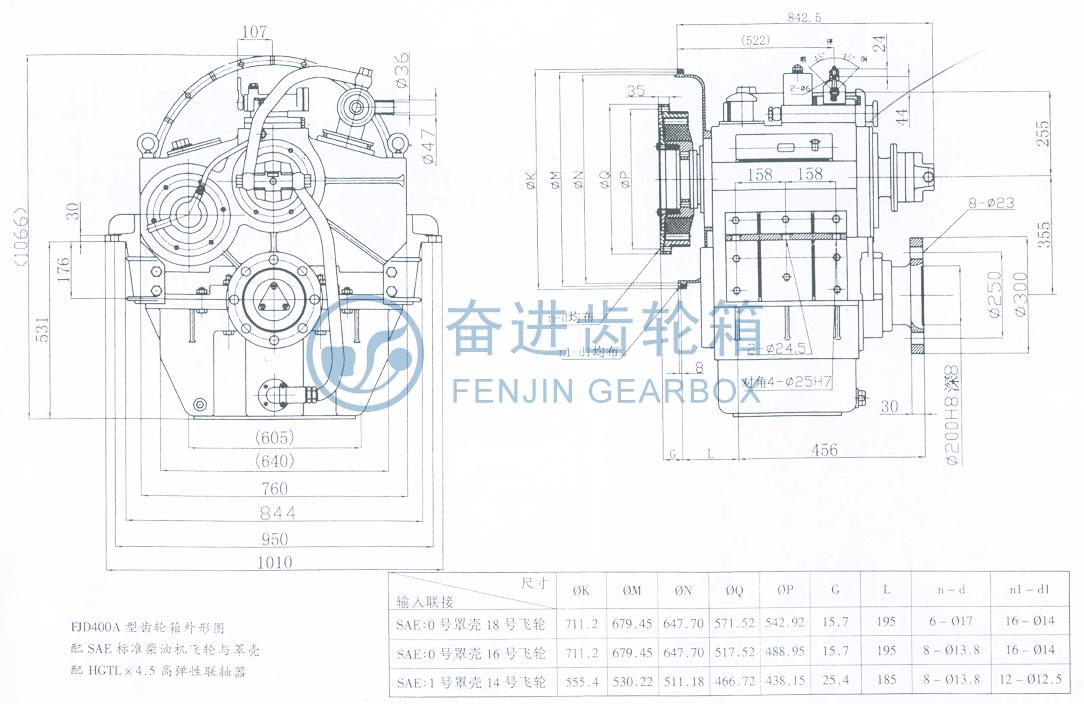

| Design Of Marine gearbox D400A: |
 |
| |
|
 |
|
