WebSite : PageHome > Products >Marine
Gearbox |
|
|

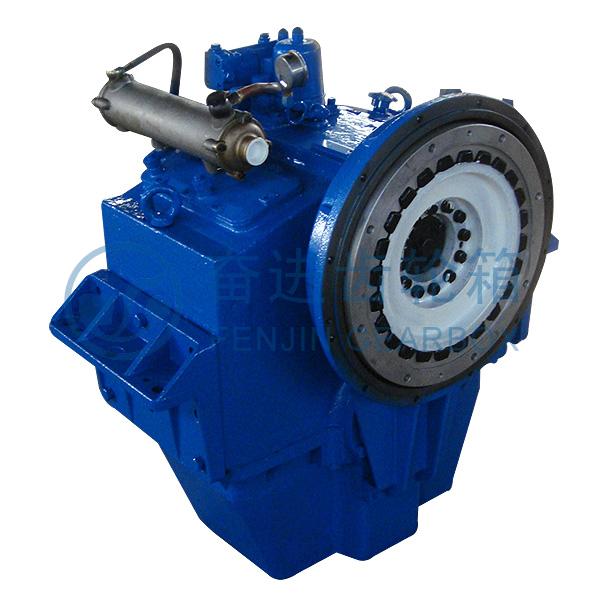

Marine gearbox D300A |
| Power/speed(kw/rpm):4.4/1000~9.2/2100 |
| Ratio(i)
|
4.0
|
4.48
|
5.05
|
5.52 5.90 6.56
|
7.06 |
7.63 |
| Rate(kw/rpm) |
0.257 |
0.243 |
0.221 |
0.184 |
0.147 |
0.125 |
|
| Rated thrust propeller:60KN |
| Center distance:355mm |
| Bell housing: 12V135 SAE0 1 |
| Flywheel:12V135 SAE18 16 14 |
| L×W×H:638×920×1040mm |
| Net weight:880kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: 12V135 / 12V150 / 6160 / KTA19-M6000
/ TBD234V12… |
| |

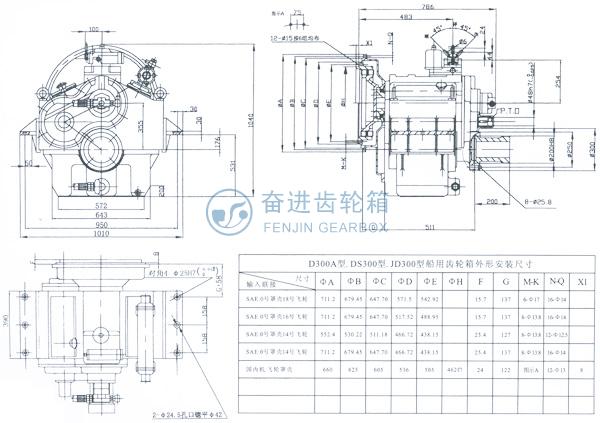

| Design Of Marine gearbox D300A |
 |
| |
|
 |
|
