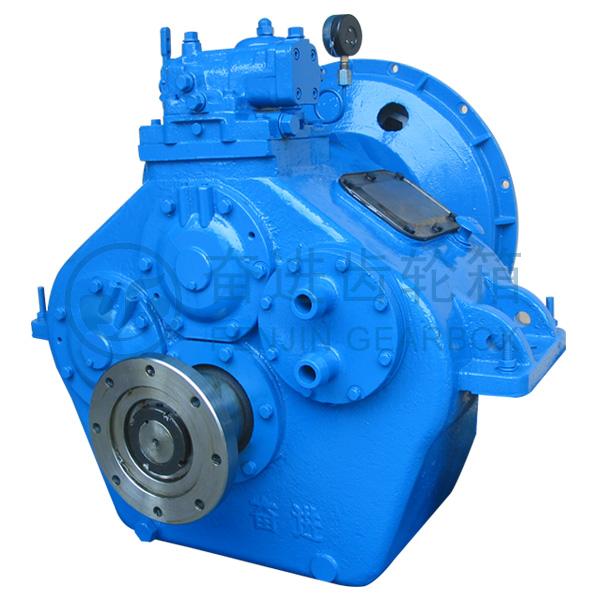

Marine gearbox 40A |
| Power/speed(kw/rpm):4.4/1000~9.2/2100
|
| Ratio(i)
|
2.07 2.96
|
3.44 |
| Rate(kw/rpm) |
0.030
|
0.025 |
|
| Rated thrust propeller:8.8KN |
| Center distance:142mm |
| Bell housing: 4110C SAE1 2 3 |
| Flywheel:4110C SAE14 11 1/2" |
| L×W×H:414×610×620mm |
| Net weight:225kg |
| Control type:push-and-pull flexible shaft
|
| Partial engine: X4105BC / 695C / 4110C
/ X6105BC… |
| |
|
| |

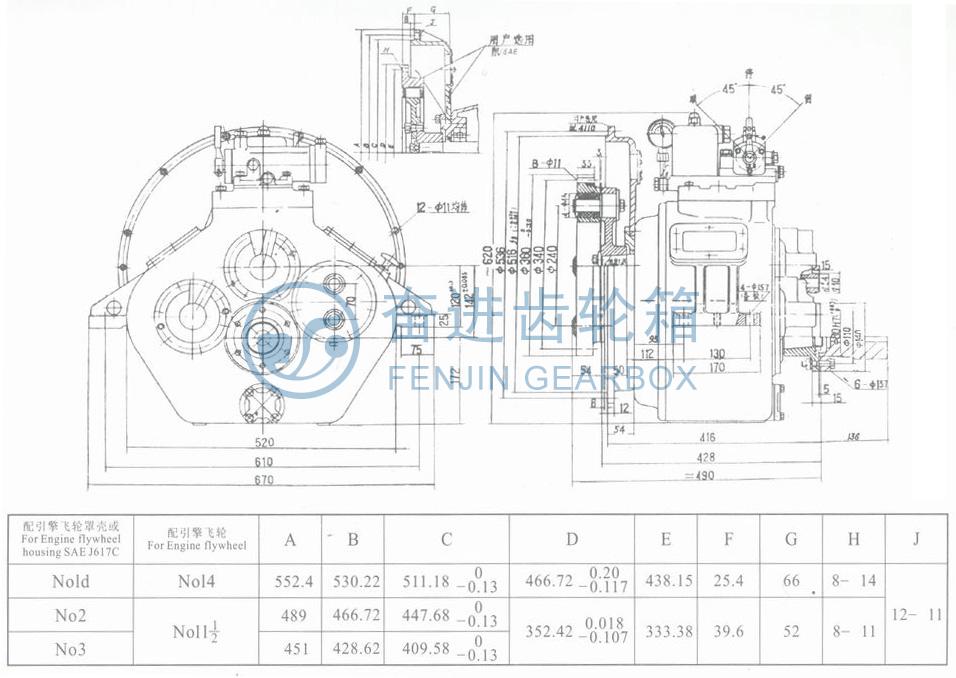

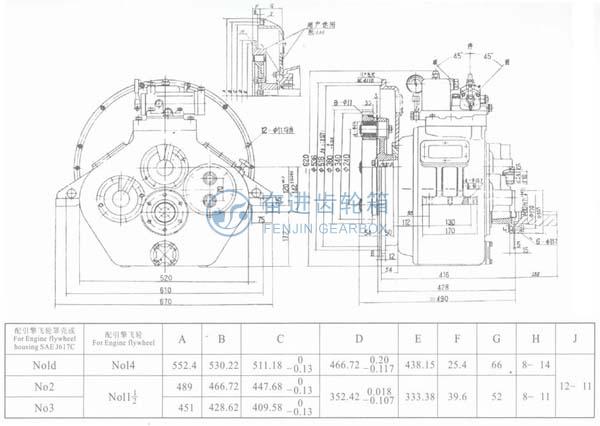

| Design Of arine gearbox 40A |
|
|
 |
|
