WebSite : PageHome > Products >Marine Gearbox

marine gearbox

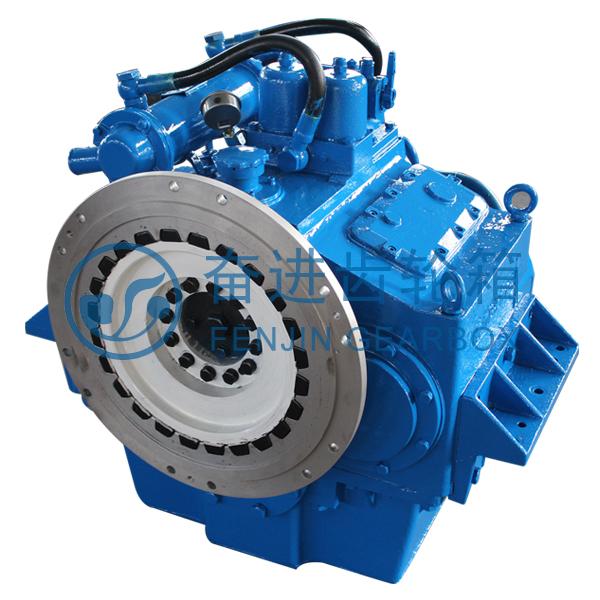

Marine gearbox 400

Power/speed(kw/rpm):4.4/1000~9.2/2100
Ratio(i)
2.04 2.50 3.0 3.42
4.06
Rate(kw/rpm)
0.331
0.279
Rated thrust propeller:82KN
Center distance:264mm
Bell housing: SAE0 1
Flywheel:SAE18 16 14
L×W×H:641×890×890mm
Net weight:820kg
Control type:push-and-pull flexible shaft(recommened), electric control
Partial engine: N6160 / N165 / 6170 / 6190ZLC / TBD604BL6…

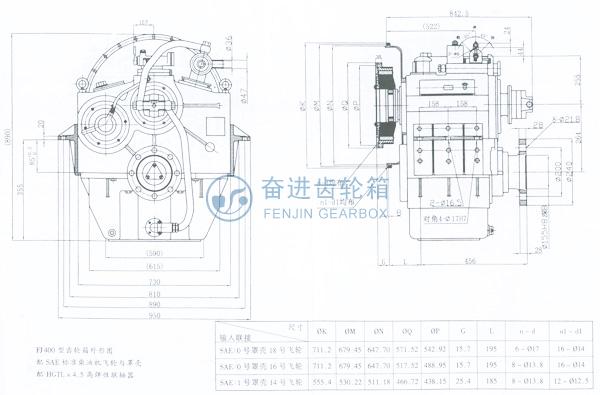

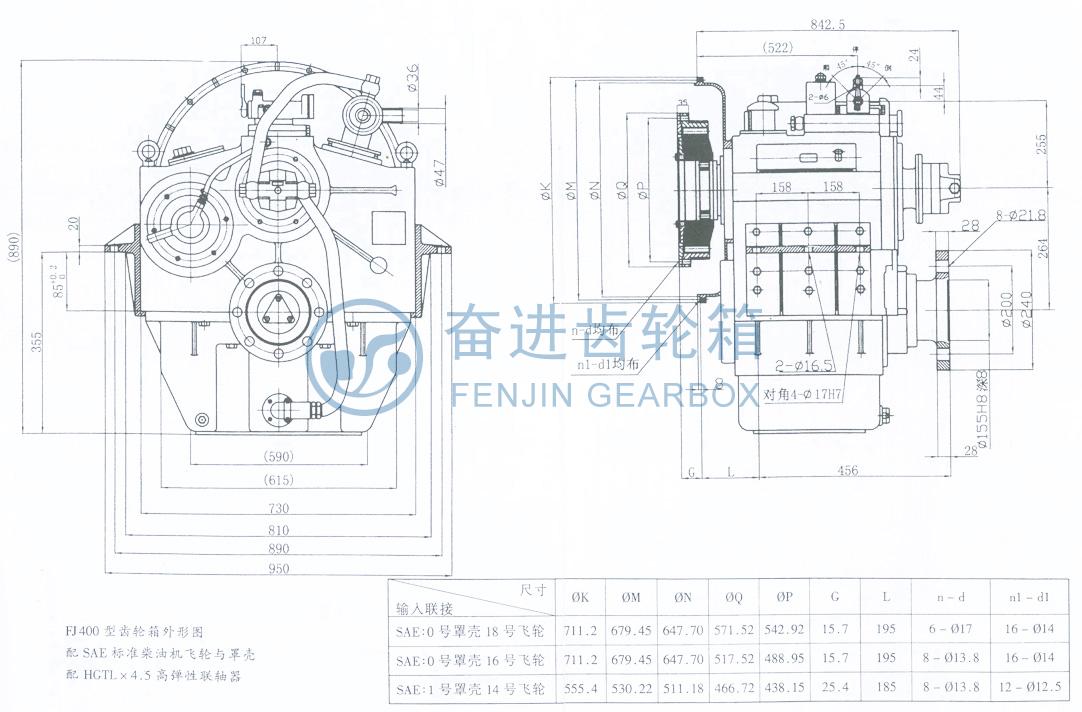

Design Of Marine gearbox 400 series
