WebSite : PageHome > Products >Marine
Gearbox |
|
|

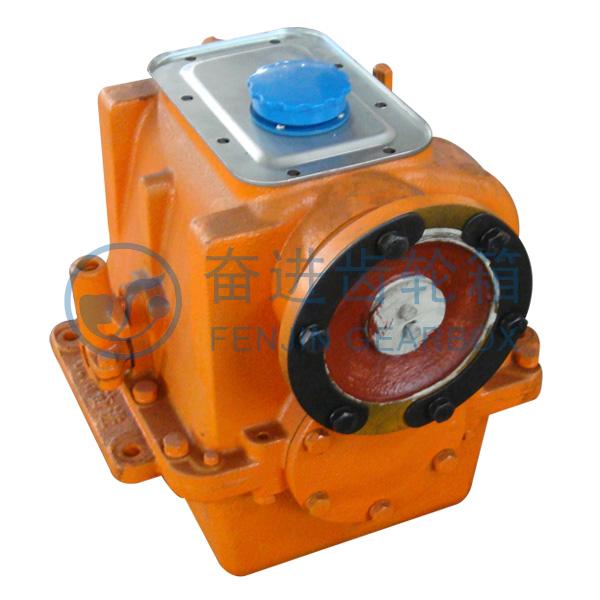

Marine gearbox 16A |
| Power/speed(kw/rpm):6/1000~24/2000 |
| Ratio(i)
|
2.07 2.48 2.95 3.35
3.83
|
| Rate(kw/rpm) |
0.012 |
|
| Rated thrust propeller:3.5KN |
| Center distance:135mm |
| Bell housing:2105C 395 SAE3 4 |
| Flywheel:2105C 395 SAE11 1/2 10 |
| L×W×H:422×325×563mm |
| Net weight:84kg |
| Control type:manual control |
| Partial engine: 2105C / 395C / 485C / MWM D226-2…
|
| |

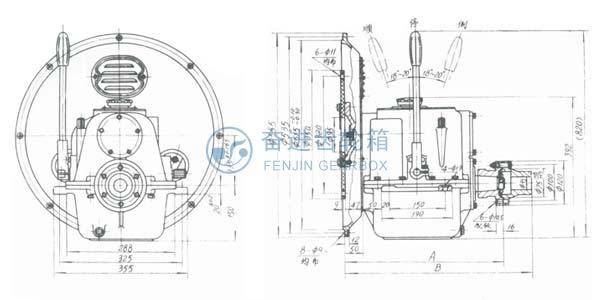

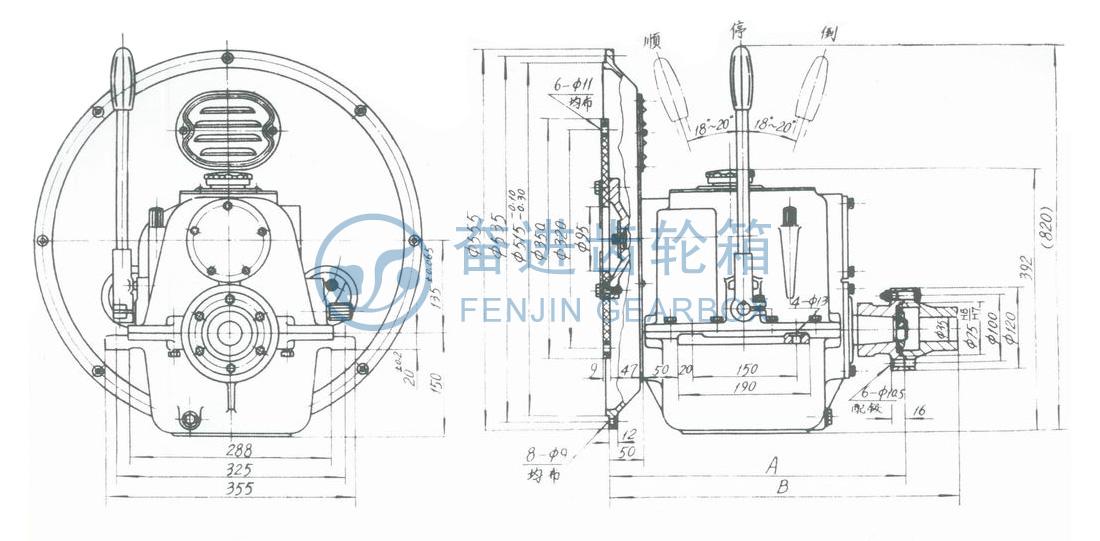

| Design Of Marine gearbox 16A |
|
|
 |
|
