WebSite : PageHome > Products >Marine
Gearbox |
|
|

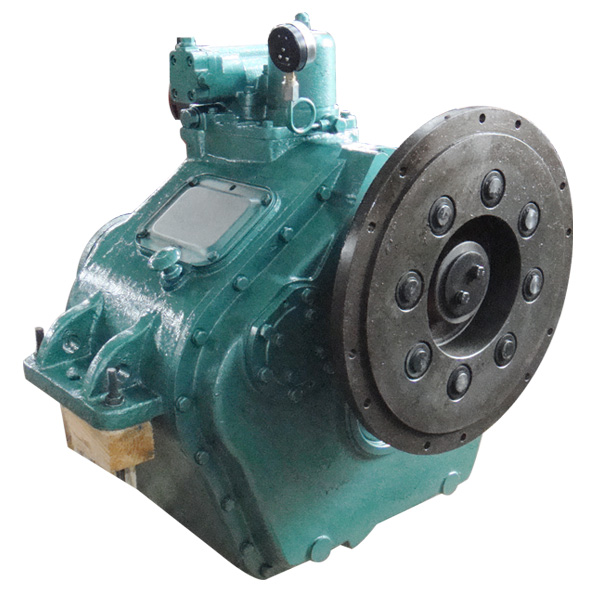

Marine gearbox 120B |
| Power/speed(kw/rpm):66/7500~158/1800 |
| Ratio(i)
|
2.03 2.81
|
3.73 |
| Rate(kw/rpm) |
0.088
|
0.044 |
|
| Rated thrust propeller:25KN |
| Center distance:190mm |
| Bell housing: 6135Ca 4120 |
| Flywheel:6135Ca 4120 |
| L×W×H:605×744×770mm |
| Net weight:400kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: 6135Ca / H615 / NT-855-M240
/ D234V8… |
| |
|

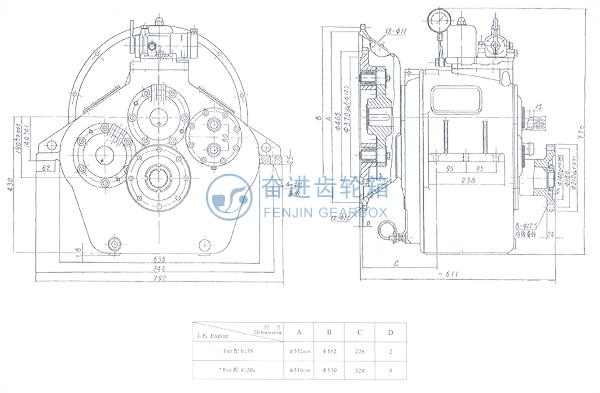

| Design Of Marine gearbox 120B |
|
|
 |
|
