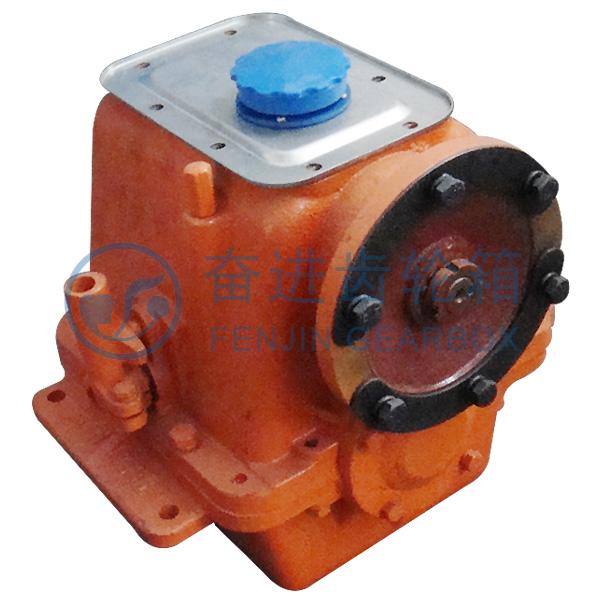

Marine gearbox 06A |
| Power/speed(kw/rpm):4.4/1000~9.2/2100 |
| Ratio(i)
|
2.52 3.05 3.50
|
| Rate(kw/rpm) |
0.0044 |
|
| Rated thrust propeller:1.8KN |
| Center distance:124mm |
| Bell housing:195C |
| Flywheel:195C |
| L×W×H:350×316×482mm |
| Net weight:58kg |
| Control type:manual control |
| Partial engine: 195C / 285C / YANMAR / TS130 /
TS155… |
| |

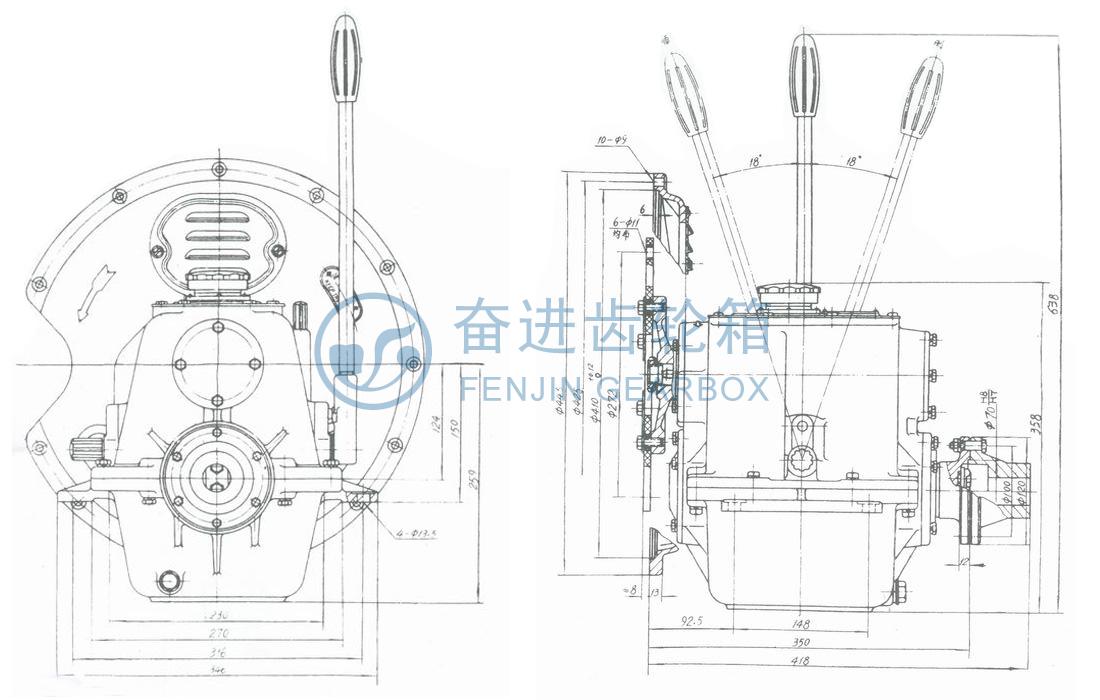

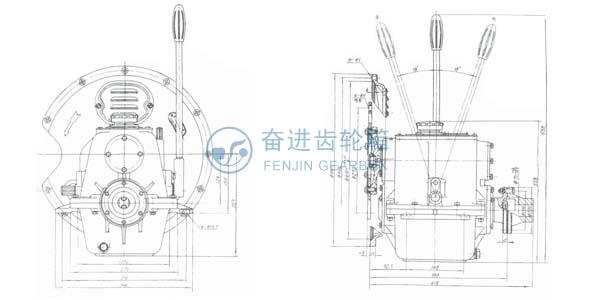

| Design Of Marine gearbox 06A |
|
|
 |
|
